PRESS RELEASE 2013-10-14

A Difficult Problem with Threading

Burrs are always a difficult problem when threading. It doesn´t matter which method is used. The burrs must be removed. Chamfering is the most common method. As a standard tool solid carbide thread mills from SmiCut (ThreadBurr) deburr the thread on the top in the same operation as threading. Read more about ThreadBurr.

But what if the burr is at the back of the piece and the surface is not even and vary several millimeters. Hand Deburring is often applied. This is very time consuming, especially if it is a difficult to machine material.

The Solution for Removing Burrs Easily

SmiCut has the solution to this problem. Thread milling with Double ThreadBurr. This milling cutter not only remove the burr on the top of the thread, but also on the back, and in addition it mills the thread.

An example is a thread on a turbocharger to the automotive industry in China. Before tested SmiCut’s thread mills, conventional thread milling cutters was used and hand deburring tools thereafter. Now Double ThreadBurr from SmiCut is used (see picture).

Gängfräsen Double ThreadBurr med pilar som indikerar vilken del som gradar.

Double ThreadBurr deburr on both sides.

The customer was extremely pleased to avoid the time-consuming hand deburring. Deburring is automatic on both the top and bottom when thread milling with SmiCut’s Double ThreadBurr. No extra time for deburring. Threading and deburring is done in the same operation.

Extremely Long Tool Life

The most impressive was the extremely long tool life, 8 hours. The previous thread milling cutter managed 300 threads per cutter. They thought it was okey until SmiCut got 1300 threads per cutter. This is important because consumption was 600 thread mills per year. Now suddenly needed only 140 mills per year.

Framsidan av materialet där gängfräsen Double ThreadBurr gängat och gradat på båda sidorna.

The thread on the top has no burrs

Baksidan av materialet där gängfräsen Double ThreadBurr gängat och gradat på båda sidorna.

The thread on the back has no burrs


Case Study Double ThreadBurr (PDF)
Similar Posts
internal thread turning tool
Technical Information

Essential Guide to Minimum Bore Diameter in Thread Turning Tools

Why Does Minimum Bore Diameter Matter? When producing internal threads with a thread turning operation,…
Technical Information
FourCut CAD Drawings: Enhancing Production with 3D STEP Files

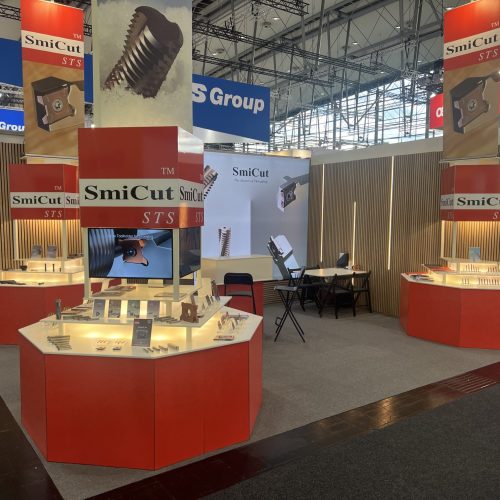

SmiCut booth at EMO Hannover 2023
Press Release
Experience SmiCut Innovations at EMO, Hannover 18-23 September 2023
Fraises en carbure monobloc pour l’aluminium
Technical Information
Solid Carbide End Mills for Aluminium
Technical Information
Thread Milling – FAQ
Technical Information

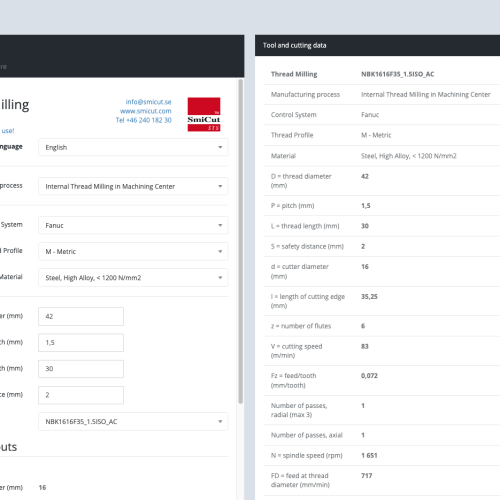

SmiProg Online – accessible to all modern devices
